Automation Redefined for FISH
Learn More >
A New Standard in Automated Staining Technology
High Capacity FISH Staining
Optimized, Ready-To-Use Probe & Reagents
Intelligence Meets Ease of Use
Smart Auto-Clean Technology
Flexible Hybridization Timing
LIS/LIIMS Compatible
Engineered for Excellence
For Even The Most Demanding Laboratories

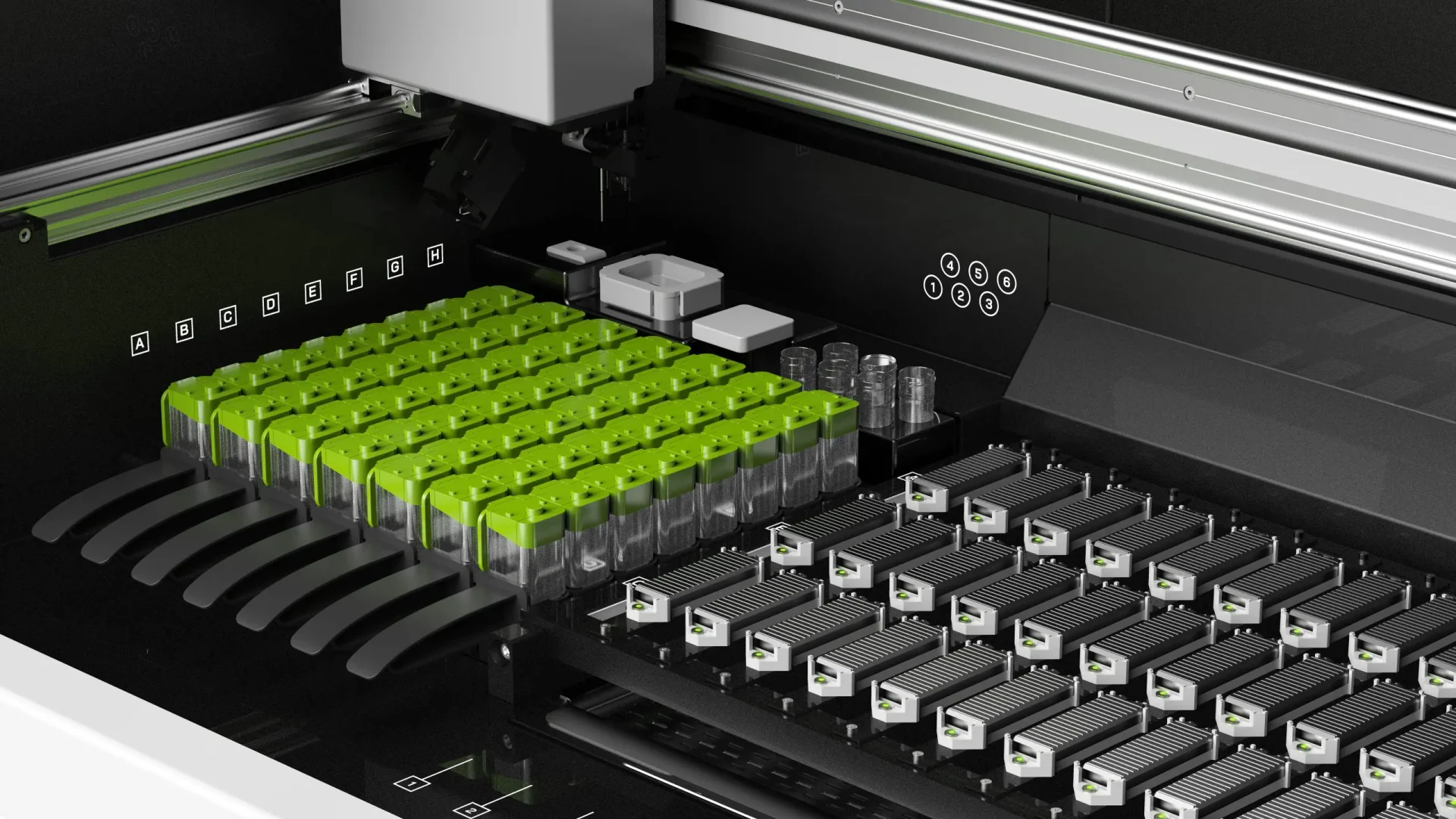

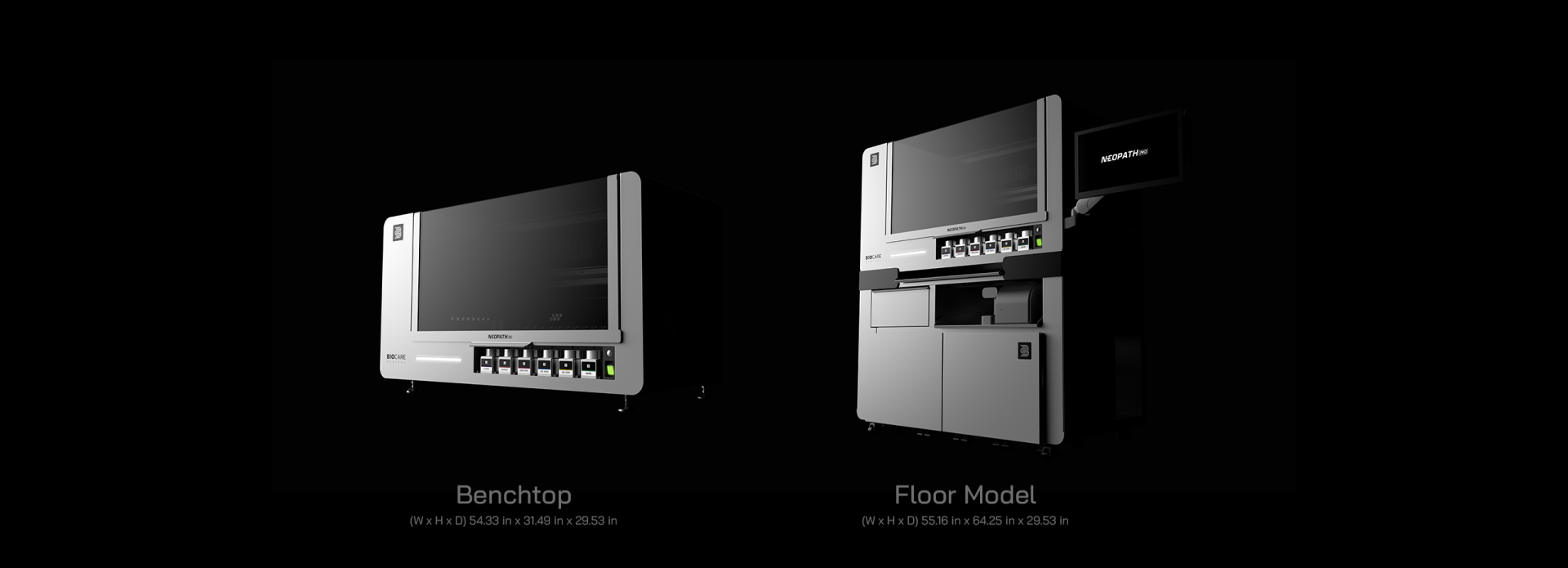

The NeoPATH Pro transforms high-volume FISH workflows by combining advanced automation with lab-tested design. With 42-slide and 56-reagent capacity, batch access, and real-time data tracking, this all-in-one platform delivers exceptionally clear, crisp staining while maximizing throughput. Developed with insights directly from cytogenetics labs, the NeoPATH Pro is easy to operate, fully compatible with LIS/LIMS systems, and designed for efficiency, whether placed on a bench or freestanding. From fast 2-hour hybridization to overnight 12-hour protocols, it helps your team adapt to your exact workflows and operate smarter, faster, and with more confidence—setting a new standard in automated FISH technology.
Automation Designed For All Labs
NEOPATH PRO SYSTEM SPECIFICATIONS
|
Applications |
FISH |
|
Slide Capacity |
42 Slides |
|
Reagent Rack |
7 Reagent Racks, each consists of 8 Vials (Total 56 vials) |
|
Bulk Reagents |
3 Bulk Containers (Max volume: 2000 mL each) |
|
Carboys & Waste separation |
Wash Buffer (25 L), Cleaning Solution (25 L) |
|
Antigen Retrieval Temperature Range |
25°C to Max 115°C at Sea Level |
|
Reagent Capacity |
2.5 mL, 15 mL, 50 mL |
|
Syringe Capacity |
5 mL |
|
Dispense Volume |
25 uL minimum – 5 mL maximum |
|
Unit Control |
One Instrument Per Computer |
|
Instrument Weight |
330.70 lbs (150 kg) |
|
Instrument Weight (with Dock Accessory) |
573.20 lbs (260 kg) |
|

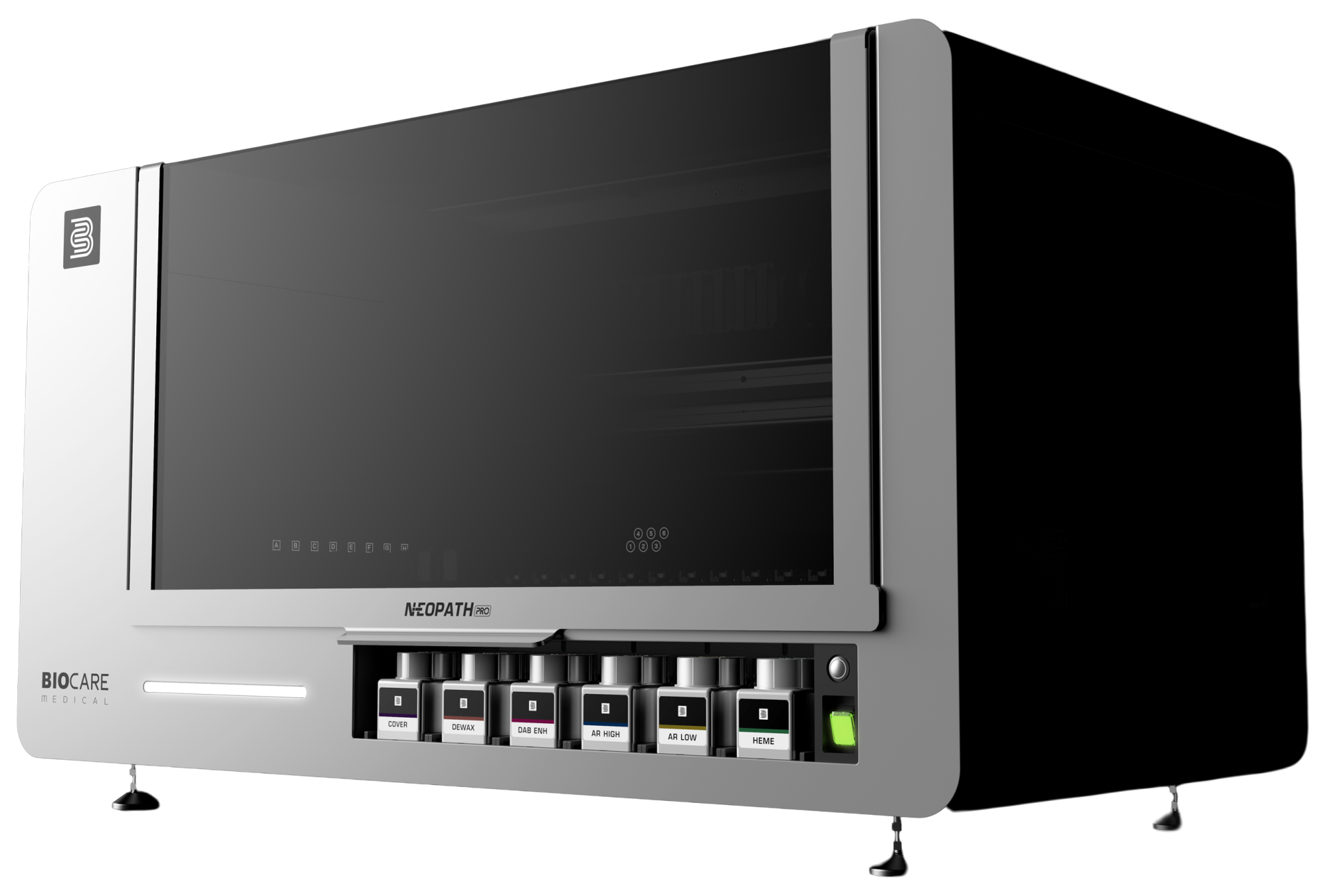

Instrument Dimensions |
(Door Closed – W x H x D) 54.33 in x 31.49 in x 29.52 in / 138 cm x 80 cm x 75 cm |
|

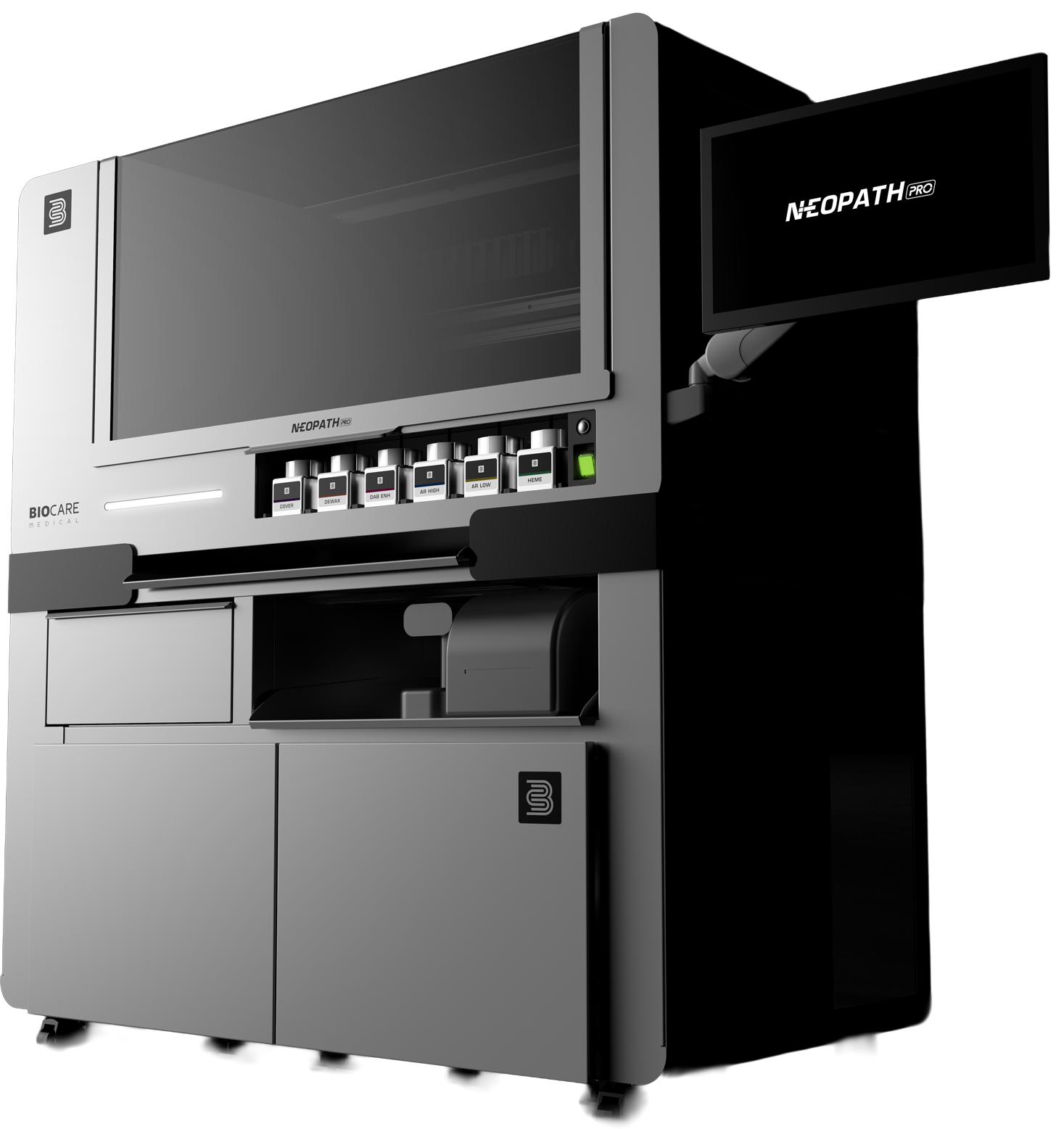

Instrument Dimensions (with Dock Accessory) |
(Door Closed – W x H x D) 55.16 in x 64.25 in x 29.53 in / 140.20 cm x 163.20 cm x 75 cm (Door Open – W x H x D) 55.16 in x 82.70 in x 29.53 in / 140.20 cm x 210 cm x 75 cm (Setup space with PC) W 78.78 in / W 200.20 cm |
|
Electrical Requirements |
Voltage : 100 – 240 VAC Frequency: 50 – 60 Hz |
|
UPS Requirements |
120VAC UPS: Power Capacity (VA): 1500 VA – Voltage Required: AC 100/110/120 V |
|
Noise Rating |
60 dBA at 1.5 Meter Distance |
|
Reports |
Slide QR Code, Patient Information, Staining Runs |
|
LIS |
HL7 Server Connection |
|
Reagent Rack Temperature |
18 – 22°C |
|
Programmable Delayed Start |
Up to 48 hours |
|
Operating Conditions |
5 – 32°C |
|
Operating Process |
Batch loading and unloading (FISH) |
|
Probes |
Pre-optimized, Ready-to-use probes. |
Learn More About NeoPath Pro
Submit your information and an Empire representative will be in touch with more details about NeoPath Pro.
